Understanding Audio Levels

A basic understanding of the general audio levels mentioned in this article will help you avoid the common mistakes often made when connecting audio devices together. We are going to talk about three different general levels of audio signals.  The names of the three general audio levels are speaker level, line level and microphone level. For simplicity, the different audio levels are described in volts. For an understanding of decibel levels used in audio, see the articles on decibels starting here.

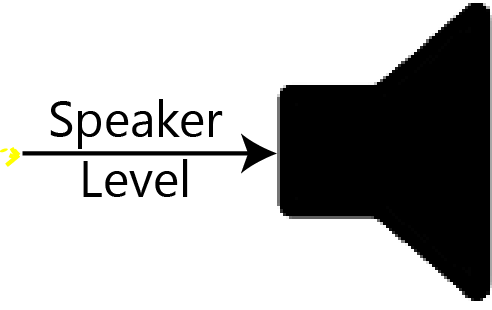

Speaker Level

A speaker needs a few volts of electrical audio signal to make enough movement in the speaker to create a sound wave that we can hear. Small speakers need only a few volts, but large speakers need 50-100 volts to make a loud sound.

Line Level

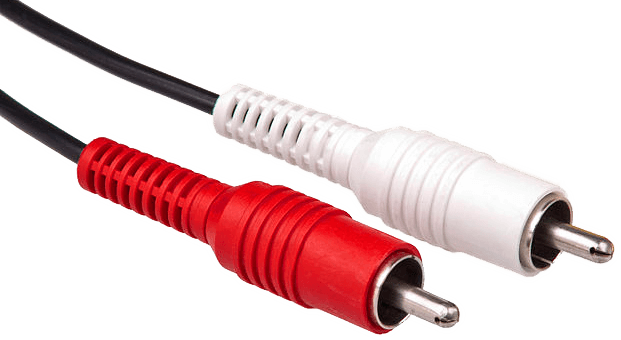

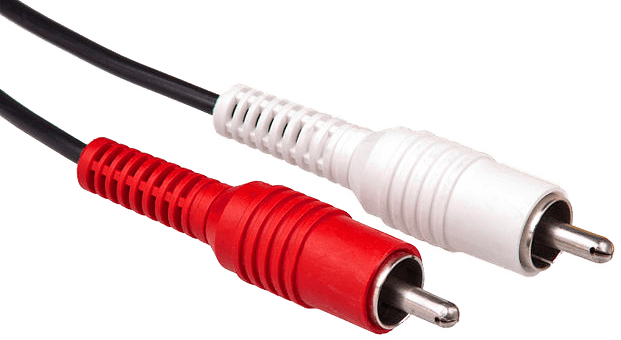

A speaker is connected to an amplifier. Think of your HiFi amplifier at home. What plugs into your amplifier? DVD player, CD player, radio/tuner, video camera. All these devices plug into the “line in” or “Aux in” of your amplifier.  “Line IN”, “Aux IN” and “Line OUT” all have an electrical audio signal at line level. You are probably aware of the standard red and white leads used in HiFi equipment, these all use line level. Other plugs are also used for line level. Line level is about half a volt to one (½ – 1) volt. It is the job of the amplifier to amplify the half to one volt of line level, up to the 10 volts or more of speaker level.

Note: A common error is to connect plugs and sockets together just because they fit. Don’t assume audio level based just on the type of plug being used. The same type of  plug can be used for different purposes (and different audio levels).

Microphone Level

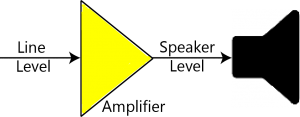

Ok , so we have line level (about ½ – 1 volt) which goes into an amplifier to make it up to speaker level (about 10 volts or above).  What audio level do you think Mic level is? How much voltage do you think comes out of a microphone, as a result of you speaking into it? Answer: Stuff all!

The output voltage of a microphone is very low. It is measured in milli-volts, that is 1/1000th of a volt. A mic can give as little as 1 mV, or upto 100 mV, depending on how loud you speak into it. That is not very much. So what do you think is going to happen if you plug a mic directly into the line in of an amplifier? Answer: A very low level of muffled sound if anything.

Mic Pre-amps

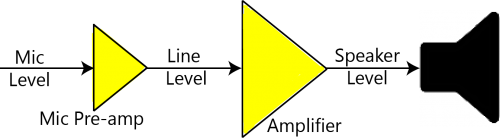

The amplifier is wanting line level, ½ – 1 volt to produce enough signal to make the speaker work properly. But the mic is only producing milli-volts. So what is needed is a small microphone amplifier that amplifies the audio level from mic level to line level. This should go between the microphone and the amplifier. Because it is for the microphone and it is before the main amp, it is called a mic pre-amp. A mic pre-amp amplifies the milli-volts from a microphone up to line level.

Mic pre-amps are normally built into devices designed for connecting to a microphone. Equipment like an audio mixer, a digital recorder, a video camera or a computer – all these may have mic level inputs as well as line level input, or just a mic level input. .

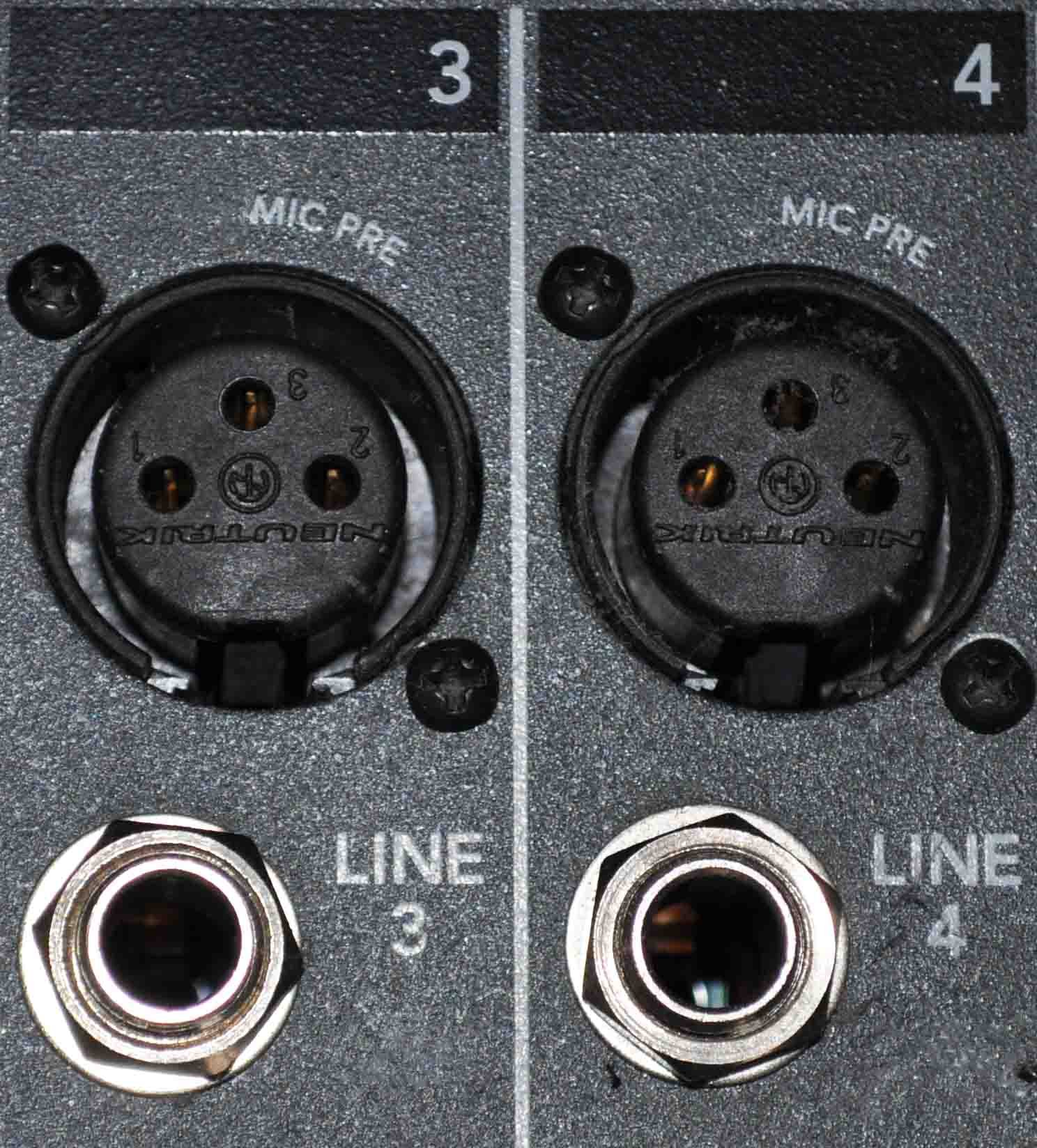

Audio level microphone level, line levelThe picture on the right shows for each input on this mixer there is a line level input (labelled Line 3 and Line 4), as well as a microphone pre-amp (labelled MIC PRE).

Obviously a microphone plugs into the mic input, as the mic inputs are connected to the in-built mic pre-amps.

A line level device would obviously plug into the line in socket.

But what if your mixer (or camera/recorder) only has a microphone input, and you need to connect a line level source to it? This would result in the line level (½ – 1 volt) being connected to the input of the mic pre-amp. The trouble is, the mic preamp is expecting only a few milli-volts. The resulting sound will be very distorted as the mic pre-amp is completely overloaded.


So how can we do this? How do we connect a line level to a mic level input? We have to reduce the line level down to mic level.  The technical word for this is to attenuate the signal. As an amplifier amplifies, or boosts the signal; an attenuator attenuates, or reduces the signal.

You can buy attenuators at a music shop, they are called DI boxes. DI stands for Direct Injection, meaning you can directly inject a line level into the mic input without any problems. It is also possible to make an attenuator, possibly with variable attenuation, to cope with different levels. It is also possible to buy or build a fixed attenuator in a cable. This is a cable with resistors built-in to the plugs to attenuate the line level down to mic level – this is very useful for a video camera or portable digital recorder.

Audio Level Summary

There are three main audio signal levels: mic level (millivolts), line level (around 1 volt) and speaker level (around 10 volts or more). The rule is, only plug speakers into the speaker socket of an amplifier; only line level into the line in of any equipment; and only mic level in the mic input of your mixer, camera or laptop.  The most common cause of  audio distortion comes from not understanding the different levels, and how to connect them all together.

Practical Example 1

Scenario: A keyboard (electric piano) located on the stage needs to connect to a mixer located at the back of the hall, with a microphone multi-core cable connecting between the two.

Issue: The output of the keyboard is at line level, and the microphone input at the mixer requires mic level. (There is also the issue of different plugs and balanced/unbalanced inputs but these are the topics of other articles).

Solution: Use a basic DI box available from most music or electronic stores. A DI box acts as an attenuator which reduces the line level of the keyboard to mic level for direct connection to the mixer (via the multi-core cable). The DI box also overcomes the issues of matching plugs and going from unbalanced to balanced  – so this is a perfect solution. This solution also works for connecting electric guitars, electronic drums and DVD players.

Practical Example 2

Scenario: The output (line level) of an audio mixer needs to connect to a digital camera or digital recorder which only has a microphone input.

Issue: The output of the mixer is at line level, and the microphone input of the camera/recorder requires mic level.

Solution: A basic DI box could be used, but this would require an input lead, and output lead and the DI box  – a lot to carry in your camera bag. A neater solution is to have a lead with a 40dB attenuator built into it. This will reduce the line level from the mixer by a factor of 100, which will bring the line level down to a reasonable mic level to connect directly to the microphone socket of the camera/recorder.

This article is based on one I originally wrote for my friends at CamcorderUser.net, and has been refined by their helpful comments.


    • Hi Daryl,

      It will depend on what the 1/4″ phone jack is.

      The RCA preamp out is at line level. If the 1/4″ phone jack is for microphone in then it will be distorted. If it is for guitar in, or line in, then it should work okay.

      You have done well to ask, as many people just connect things because they fit, rather than consider the levels involved.

      Hope this helps,


  1. I am trying to connect a car bluetooth receiver that has a 3.5mm aux-in connection directly to a car amplifier. Should I convert the 3.5mm aux connection to RCA to connect to the pre-amp inputs of the amplifier or should i convert it to bare wire to connect to the high-level inputs on the amplifier? I’m confused about what lever the 3.5mm jack signal will be. My car is a classic with no head unit so I do not have an aux-in port.

    • Hi Joel,

      First up, you say the Bluetooth receiver has a 3.5 mm Aux in. If that is a AUX in then it will not give sound out.

      However, if it is actually a line out connection then I suggest it is at line level and you want RCA connections on them to connect to your amplifier. Even if it is at headphones outlet level you would still run into the line in of the amplifier is headphone level is not much different to line level.

      Does this help?


  2. Wow, finally I actually comprehend the frustrating relationship of Odd-eo connections. Thank you and I will donate asap. Very informative.

  3. Dear Geoff:

    I am assembling a PA system for our Tenants’ Association for use on special occasions and general meetings (volunteer project-components were purchased from auction) on a non-existent budget.

    Being retired, I had the time and can perform basic soldering, however I know enough to know I don’t know enough! I was gratified to locate, and have been reading much of your published work online with respect to Audio (Impressive, to say the least and Kudos for your efforts) but have reached overload – too much information for my simple mind to absorb-not sure how to deal with it, other than to grow hair.

    The system is comprised of: JBL UREI 5330 mixer, RANE ME 30 equalizer and two DUKANE 60 amps.
    JBL UREI 5330: Max Output: +24dBm into 600 ohms
    (given: when dB refers to an absolute level, the reference is to 0dB = 0.775v (RMS). 0dBm is 1mW into 600 ohms). I believe this would translate to 3.55v (0dBm = 1mW = 0.224v (RMS)
    RANE ME 30: Max Input Level: +21dBu (9 volt); Max Input Imped: 20k ohms.
    Max Output Level: +21dBu (9 volt); Max Output Imped: 100 ohms
    DUKANE 60 (60 watt): Mic In: 600mv; Mic Imped: bal. 200 ohm nominal;
    Aux In: 0.4v (400mv ?); Aux Imped: 100k ohms (60 Watts per channel)
    Proposed interconnection: JBL mixer “patch” to RANE Eq & “return”; mixer out to loop through each of the 2 DUKANE amps (Aux In) (1 per Left/Right). DUKANE out to 100W 8 ohm Rockville stand speakers (Left and Right).
    Would also like to add an Eq. output connector to provide a Mic/Aux In for a secondary amp (house amp that supplies 4 ceiling speakers) and a “Record” out for audio record (not necessarily Eq’d).

    I appeal to you for guidance in how to properly interconnect this gear. I realize it is a lot to ask, since normally your responses have been to specific questions as opposed to application design. Any assistance would be enormously appreciated!

    • Hi Jim,

      There are several ways you could connect your gear up. I’ll suggest one way, and you can come back to me with your thoughts.

      I would start by using one of the main outputs to go to the Rane EQ. Then the output of the Rane I would connect to the input of both amps (just loop from one to the other in parallel).

      You could also loop from the second Dukane your aux amp for the ceiling speakers.

      Then the 2nd Main output of the mixer can be used for recording, with separate level control and un-Eq’d.

      how does this sound?


      • Geoff:
        Thanks for your instantaneous response.
        Your suggestion is what I initially envisioned but could not get my head around the numbers.
        The auxillary House Amp is a Tortec 35 watt feeding 4 ceiling speakers. Information is sketchy, showing Mic input at 1.8mv sensitivity, while the Aux input sensitivity is 130mv. Can I go direct in to the House Amp Aux terminals with a loop from the Dukanes? Cable run would be nominally about 50 feet to interconnect the two systems.
        Also, on the 2nd channel output from the JBL mixer to feed recording capability, what level attenuation would you suggest? My initial thought was about a 40dB pad as per your diagram.
        I have initiated a nominal donation to assist in your most valuable service; my gratitude is beyond measure!

        • Hi Jim,
          You should be able go the 50 feet without too many problems. The levels should not be an issue, but the impedance might be – a rather complicasted issue. Try it, Is it sound OK, then all is good. If it sound very bassy or tinny, let me know I’ll offer a different solution.

          In regard to the recording level – it will depend on what you are recording with. If you are having to go into a mic input, then yes a 40 dB attenuation will probably be good. If though you are going into a line in, then you ca probably go straight in without any attenuation.

          Please let me know if I can help anymore.


  4. Thanks Geoff,

    This issue is perplexing. We inherited a large number of very old systems from a new client. The client has a hodge podge of old systems, including Bose, Crown, and a couple of others that are no longer in existence. The problem is not on every amp, only a smattering of them across all brands. We manufacture our own players, so I will look at the schematics and see if there is an adjustment on the output. We do have an adjustable output that can be controlled via the network, but that is only part of the solution, I think. I will probably end up making L-pads for the problem children….. thanks for your input.

  5. Geoff,
    I have a media player that has 3.5mm output jack with identical signals on each output (2 channel mono). The problem that I am experiencing is on new systems that we install, everything works great. But when this same player is fed into older amplifiers (typically Bose), the amps will work for a while and then shut off (power light is still on). It appears that the output of the player (1 Vpp) is causing the amps to go into protect mode, because they will come back on in time, but shut off again. Could it be so? if so, how can I pad down the output channels of the player or maybe use audio isolation transformers?

    • Hi Ronald,

      It is possible the higher input is causing the output to overload. It is also possible the speaker load is too close to the amp’s limits. Is this a problem with all Bose amps all just one in particular?

      It isn’t too hard to build a little in line attenuator. I suggest a 10dB or 20 dB attenuator should solve the issue if it is a simple input level issue. There are some details on how to do at the bottom of the bottom of my audio levels calculator .

      Before you build that, check there isn’t a volume control on the media player.

      hope this helps
