Using a Multimeter

This article introduces the basic concepts of multimeters and explains how to use them for basic measurements. Multimeters are one of the most useful electrical and electronic aids available to us. Effectively they are our eyes to see electricity. The ability to use a multimeter is essential if you need to know what is going on electrically. A multimeter is, as the name suggests, a meter capable of multiple functions. A basic meter will allow us to measure and test AC voltages, DC voltages, DC polarity, resistance and often current. More advanced meters also measure frequency, capacitance, transistor gain, and/or inductance.

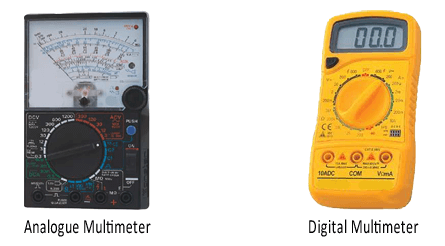

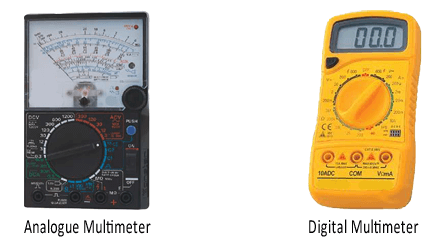

Analog vs Digital Multimeter

Multimeters come in many shapes and sizes. However there are basically two types:

The basic differences are outlines in the following table:

Analogue metersDigital meters
1. Indicate with a pointer that moves across the face of the meter.1. Display the measured value in actual digits (numbers).
2. Not as accurate as a precisely calibrated digital meter.2. Normally regarded as more accurate than analogue (only if they have been correctly calibrated).
3. Can require some practice to quickly read exact voltages, although they are very useful in showing that a voltage is present.3. Easier to read exact values than on analog meters. However this is often an over kill when all you need to know is if a voltage exists or not.
4. Especially suited to measuring voltages that vary quickly. The pointer closely follows the voltage as it varies up or down quickly.4. Display misleading results if the measured voltage varies quickly. This is because most digital meters require a second or more to read the measured voltage. If the voltage varies greatly during this time, then the reading will be wrong.
5. Only require a battery when measuring resistance.5. Require a good battery to work on all settings.


If you don’t own a meter, or cannot readily borrow one, then it is time to invest in one. A basic meter will probably be adequate for your needs. That is one that simply reads AC and DC volts, resistance and DC current. The choice between analogue and digital is yours, and will depend on availability as much as your budget and preferences. It is not recommended to pay too much money for your first multimeter, as your use of it may not be justified. However a meter that does the basics is essential.

If you need to purchase a multimeter, here is a link to Amazon’s range of multimeters

Digital meters are commonly available in most electronic stores. Analogue meters are often regarded as “old technology”. However in many situations an analogue meter may be the only meter available that is working (since they don’t require batteries to read voltages). Both types of meters will be discussed in this chapter. If you have a meter, please have it with you as you read this chapter. Read the instructions for your particular meter to be aware of its functions. Where possible use your meter to do the exercises as practical examples.

Measuring Voltages on your Multimeter

No matter what sort of meter you have, you need to know roughly what sort of voltage you are measuring. The first choice is between AC and DC. As a guideline, common sources are:

For AC:   transformers, alternators (often erroneously called generators), house wiring, light sockets, power outlets (wall sockets).

For DC:  batteries, solar panels, cars, electronic equipment.

Once you have determined if you will be measuring AC or DC, you need to select this on your multimeter. Refer to your meter instructions. Most meters will not be damaged by selecting AC instead of DC, or DC instead of AC. However the meter won’t read correctly, if at all.

The next step is to consider roughly the magnitude of the voltage you will be testing. Then select on your meter a range that is bigger than that voltage.

Example 1: You want to measure the voltage at the wall outlet. It should be 220 or 240 volts, select the 250 or 300 volts range on AC.

Example 2: You want to measure the voltage of your car battery. It should be 12 volts. Select the 15, 20, 25, 30 or 50 volt range on DC, (depending on your meter’s ranges).

If you are not sure what the voltage should be, then start on the highest range.

Analogue Meter
Digital Meter
If the meter pointer only moves a tiny bit, then select a smaller range. Continue to select a smaller range until the pointer is midway or higher.If the readout reads 0.01 or a similar very low reading, select a lower range until a more meaningful reading is displayed.
If the pointer goes off the scale (all the way over the right-hand side) then you need to quickly remove the probes, select a higher range, then measure againIf the range selected is too high, most meters will display OL or -1 or similar indicating overload or out of range.


Some (more expensive) digital meters have a feature called “auto-select” or “auto-ranging”. This means that the meter will automatically select the appropriate range for the voltage you are measuring. With these meters, all you need do is select AC or DC.


Every meter has two probes. One black probe and one red probe. The black one is generally connected to the negative(-) terminal of the meter. The red probe is generally connected to the positive(+) terminal of the meter.

To avoid electric shock when measuring voltage or current, always hold only the plastic insulation on the probes.
DO NOT touch the metal pins

Measuring AC

When measuring AC, it doesn’t matter which probe goes to the phase (sometimes known as “active” or “hot”), and which probe goes to the neutral (sometimes known as the “cold”. That is, AC has no polarity (see the article on AC and DC  for more details).
Exercise 1: To measure the voltage at a wall outlet, insert one probe in one hole and the other probe in the other hole. It doesn’t matter which probe goes where. Try it with your meter:

  1. Select AC volts, 250 or 300 volts range (depending on your meter’s ranges).
  2. Being sure not to touch the metal points of the probes, put one probe in one of the holes in the wall outlet. Put the other probe in the other outlet hole. Your meter should read somewhere near what the voltage should be (110, 220 or 240 volts).
  3.  Now, still being sure not to touch the metal points of the probes, swap the probes over. That is, remove both probes from the outlet holes, swap them over and carefully re-insert them. Your meter should read the same as it did before. This shows it doesn’t matter which way the probes go when measuring AC.

 Measuring DC

When measuring DC, you need to put the red probe to the positive(+), and the black wire to the negative(-) of the voltage being measured. If you mix this up and reverse the wires, then the meter will read backwards. That is, on analogue meters, the pointer will quickly move off the left-hand side of the scale. If this happens, no permanent damage normally occurs, simply reverse the way you have the probes. On digital meters, all that happens is that a “-” sign appears in front of the numbers indicating a negative voltage.

Exercise 2: To measure the voltage of a car battery.

  1. Select 15, 20 or 50 volts DC on your meter.
  2. Place the red positive probe on the battery positive terminal.
  3. Place the black negative probe on the battery negative terminal.
  4. A good battery should read between twelve and fourteen (12-14) volts.

A common use for a multimeter is to detect which lead from a battery or power supply is positive and which is negative. When you don’t know which is which, hold one probe on one of the leads to be tested, and then momentarily touch the other lead with the other probe. If, on an analogue meter, the pointer moves off to the left, then swap the probes over. When the meter reads correctly, the red probe is connected to the positive wire (or positive battery terminal). On a digital meter, if the “-” sign appears, then reverse the probes for the red lead to be connected to the positive.

Exercise 3: Detect the positive end of a small flashlight battery.

Analogue MeterDigital Meter
Ensure the red probe is connected to the positive terminal of the meter.Ensure the red probe is connected to the positive terminal of the meter.
Select DC volts, and the 3 or 10 volts range (or whatever your meter has).Select DC Volts, and the 2 volts range (or whatever your meter has).
Connect the black lead to either end of the battery. Momentarily touch the red probe against the other end of the battery.Connect the black lead to either end of the battery. Touch the red probe against the other end of the battery
If the meter reads correctly, go on to the next step. If the pointer moves off to the left, change the probes around. That is, connect the black probe to the end you just momentarily touched with the red probe. Now touch the first end with the red probe. The meter should now read correctly.If the meter reads correctly (i.e. no “-” sign), go on to the next step, if a “-” sign appears, change the probes around. That is, connect the black probe to the end you just touched with the red probe. Now touch the first end with the red probe. The meter should now read correctly
The end connected to the black probe is the negative(-) wire. The other end is positive(+).The end connected to the black probe is the negative(-) wire. The other end is positive(+).


 Practical points to Note

1) The meter reads the voltage between the two probes, not necessarily the total voltage in the circuit. This may seem like a logical statement, but many people have been trapped by not understanding the difference.

2) Looking at the output voltage of a HiFi amplifier is best done with an analog meter.

Exercise 4: It doesn’t matter if you use the left or right channel, but you need to use the positive and negative terminal of the one channel.

  1. Select AC and the 50 volt range on your meter.
  2. Connect one probe to the negative speaker terminal.
  3. Connect the other probe to the positive speaker terminal.
  4. The meter pointer should dance up and down in time with the music. How far the needle moves will depend on the volume control.

This is not a very practical way of measuring the output, but it does give an interesting display. To properly measure the output capabilities of your HiFi amplifier you need other test equipment.

Measuring Resistance on your Multimeter

A useful feature of multimeters is their ability to measure the resistance in a circuit. Although the exact resistance in a circuit may not be useful to you, often knowing the relative resistance is. Example: Knowing the exact resistance of your clothes iron isn’t important. However knowing that there is some resistance (that of the heating element) tells you that it should work. No resistance indicates a broken connection which needs to be fixed.

The best way known to destroy your meter is to try to measure high voltage (like 220 volts AC) while still on the resistance range.
Always ensure the power is turned off and disconnected before measuring resistance

The method of setting your multimeter for measuring resistance is different for analogue and digital meters. Therefore, we will look at each separately.

 Analogue Multimeter    Digital Multimeter
1. Select resistance. This is often signified by the Ohms symbol “Ω”.1. Select Resistance. This is often signified by the kilo-Ohms symbol kΩ.
2. Calibrate the meter. To do this locate the “Ohm’s Adjust” knob, a small control like a volume control. Hold the metal points of the black and red probes together so that they touch each other. While they are still touching, move the “Ohm’s Adjust” control until the needle aligns with the far right-hand side of the scale. This should be “0” on the ohms scale (normally the top scale).2. Digital meters are pre-calibrated so no further calibration is required
3. Place the probes across the resistance to be measured. For most resistance measurements it doesn’t matter which probe goes where – that is, it is not polarity conscious3. Place the probes across the resistance to be measured. For most resistance measurements it doesn’t matter which probe goes where – that is, it is not polarity conscious
4. Read the number of ohms from the meter. The top scale usually is the scale to read for resistance. Assume the needle is pointing at “15”. If the range was Ω x 1, then you are measuring 15Ω. If the range is Ω x 10 then you are measuring 150Ω. Likewise Ω x 100 = 1500Ω and Ω x 1K = 15,000Ω or 15kΩ. If the needle is close to the left-hand side of the scale, select the next range.Example: the range is on Ω x 1. The needle is pointing at 1200. Change the range to Ω x 10 for the needle to point at 120.4. Read the number of ohms from the meter. The numbers displayed indicate the resistance in Ohms. Digital meters usually measure in Kilo-ohms (KΩ). Therefore if the meter is showing 1.5, it means 1.5KΩ, or 1,500Ω, not 1.5Ω. Take note of the little symbols indicating the range (if displayed). This is especially important on “auto-ranging” meters. Without noting that it is Ω, KΩ or MΩ you can easily be mis-led into a false reading
5. If the resistance in the circuit being tested is very high, or no circuit at at all, then the needle won’t move. That is, the needle stays on the left-hand side of the scale, showing infinitive(∞) ohms5. If the resistance in the circuit being tested is very high, or no circuit at all, then the meter will try and tell you. There are various ways to indicate this condition. Some display OL, meaning “Open Loop” or “Over Load”. This means the resistance is so high it is considered to be no circuit at all, or at least outside the range of measurement. Some meters flash 1.999 to indicate this condition.Check to see what your meter does with both leads unconnected.


Some common terms

Short Circuit: When there is zero resistance in the circuit, it is said to be a “short” circuit. This is shown on all meters by reading “0” (zero ohms) – or close to zero ohms.

Open Circuit: When there is so much resistance that the meter can’t register it, it is said to be “open” circuit. This usually indicates that there is no connection between the probes.

Note: When there is an open circuit, the meter can sometimes suggest some resistance (often measured in Mega-ohms). This is normally caused by touching the probes with your hands, and the meter is actually measuring your skin resistance.

Practical Uses of Measuring Resistance

As mentioned earlier, knowing the exact resistance in a circuit is often not as important as knowing if there is a circuit at all, if there is a short circuit, or if there is an open circuit. Try the following exercises as examples.

Exercise 5: Test a lead to see if it is faulty or not. This could be a lead from your HiFi, a power extension lead or a microphone lead.

  1. Select Resistance and the Ω x 1 scale. If using an analog meter, calibrate it to read 0Ω when shorting the probes together.
  2. Check the lead for short circuits. Using only one end of the lead, place a probe on each connection. Your meter should read infinitive resistance, saying there is no circuit between the two probes. If your meter shows close 0Ω, (a short circuit), then it needs to be fixed or replaced. The most common places for “shorts” to appear are in the plugs at either end.
  3. Check the lead for continuity. Using both ends of the lead, place one probe on the same point at each end. Your meter should show a short circuit (0Ω). Now do the same for the other connection on each end. If on either connection you do not get a short circuit, then there is not a continuous circuit in the lead where there should be. It probably means the lead is broken. The normal way to fix this is to cut 10cms off either end of the lead, check that the lead now has continuity, and then rejoin the connecters. This is recommended because the greatest wear on the lead is where it bends at the exit of the plugs. If after replacing the ends there still is no continuity then it is probably best to replace the lead.

Note: Some stubborn leads will only show an open circuit after bending the lead severely at either end. This suggests the lead is broken but still making intermittent connection. It also should be cut shorter and re-joined.

Exercise 6: Check a light bulb to see if it is OK. If a flashlight doesn’t work it is good to know if the batteries are flat, if there is a bad connection or the bulb is blown.

  1. Select resistance and the Ω x1 range. If using an analog meter, calibrate it to read 0Ω when shorting the probes together.
  2. Place a probe on each connection on the light bulb. Your meter should show a circuit. Often it shows the resistance is almost zero ohms, this is normal and suggests a good light bulb.

Note: the resistance of a light bulb increases greatly when power is applied. This is because, as with most resistances, the resistance increases with temperature.

If the light bulb checks out OK, select DC volts on your meter and check that the batteries are also OK.

Exercise 7: Check if a fuse is blown or not. If you think a fuse is blown, the best way to know for sure is to remove the fuse (with the power off!) and test it with your multimeter.

  1. Select resistance and the Ω x1 range. If using an analog meter, calibrate it to read 0Ω when shorting the probes together.
  2. Place a probe on each end of the fuse. Your meter should show a short circuit (no or very low resistance). If there is very high or infinitive resistance, then the fuse is blown.

Measuring Current on your Multimeter

Most multimeters have the facility to measure small amounts of DC current. Some meters also allow the measurement of AC current. Although the measurement of DC current is explained here, the procedure for AC current follows similar principles.

When we measure voltage, we are measuring the difference in voltage from one probe to the other. That is, we measure the voltage across a particular resistance.

Example: Here we have two 1.5 volt batteries connected in series to give 3 volts across the resistance (a light bulb). By placing the probes as shown we can measure the voltage (3 volts) across the light bulb.

To measure the current in a circuit we need to measure the current flowing through the resistance. We have seen that we can’t simply place the probes across the resistance, as this gives us the voltage not the current. So what is the secret?

In the article on The Dreaded Ohms Law, we learned that the current flowing through a series circuit is the same throughout the whole of the circuit. Therefore if we can measure the current flowing through any part of the circuit, we are effectively measuring the current flowing through the resistance. That is, the current flowing through the resistance is the same as the current flowing through the wire, which is the same as that flowing through the batteries (to use our example).

So how do we do all this? We could cut the wire between the battery and the light bulb. Then connect one probe to each of the cut ends, with the multimeter selected to measure DC current. This would work as we are measuring the current flowing through the wire (and the multimeter). Because it is a series circuit, we are also measuring the current flowing through the light bulb and the batteries.

However it is not always wise to cut wires unnecessarily. In our example, an obvious place to break the circuit and insert our probes would be at the end of one of the batteries. Most battery holders have a spring to help make a good contact. It is normally possible to separate the batteries and insert a small piece of cardboard to isolate the batteries from each other. Then it is a matter of simply placing a probe on either side of the cardboard.

Whichever way it is possible to break the circuit, it is at that point that the probes need to be inserted.

Which probe where?

When measuring AC current, it doesn’t matter which way the red and black probes go. On DC it does matter. The black (negative) probe should go on the positive side of the break. That is, it should go on the side of the “break” that is closest to the positive of the power supply (or batteries). If you mix this up and reverse the wires, then the meter will read backwards. That is, on analog meters, the pointer will quickly move off the left-hand side of the scale. If this happens, no permanent damage normally occurs, simply reverse the way you have the probes. On digital meters, all that happens is that a “-” sign appears in front of the numbers indicating a negative current, but the value is correct.

Practical Points to note

1. When measuring AC current (if your meter has that selection), be very careful not to touch the metal points of the probes.This is because most often when measuring AC, it is at dangerous (high) voltages.

2. Beware of your meter’s limitations. Many meters only allow the measurement of very small DC currents. Often 25 milli-amps(mA) is the maximum. Many meters also have the capacity to measure 10 Amps. To do this you normally need to move the red probe to a different socket on the meter. This is often 10 amps AC only, not DC. Be sure to read the manual closely to know what you meter can and can not do.

3. Many digital meters allow a maximum of 200mA. If this limit is exceeded, a fuse in the meter will probably need replacing. It is wise to have a good stock of replacement fuses on hand.

4. Inserting the probes between two batteries is an easy way of checking the charging current being delivered to Ni-Cad batteries.


To avoid electric shock when measuring voltage or current, always hold only the plastic insulation on the probes.
DO NOT touch the metal pins

When measuring AC, it doesn’t matter which way the probes go.

When measuring DC voltages, the red positive probe goes to the positive side of whatever is being tested.

When measuring resistance, ensure there is no power applied to the resistance being tested. It doesn’t matter which way the probes go.

When measuring current, it is necessary to break the circuit in an appropriate place and insert the probes in series with the circuit under test. The black probe goes to the positive side of the break.

So there you go, grab a multimeter and start “looking” at electricity – but do it carefully!


  1. Short of an actual resister, what item(s) around a household is best for testing resistance by using an analog multimeter – that will show readings instead of 0?

    My fridge is not getting cold as the defrost system is at fault. The tube of the old defrost heater is pitch black and my analog multitester offered a reading of 0. I assumed that the heater was the culprit and a new replacement was thus purchased. When I put the new heater to test, however, the reading also offered 0 and…….I am confused!

    My understanding = Zero reading means current is passing through = Continuity = Both heaters are good. If so, that’s good news. But why I was unable to get any readings off any items (heater, hotplate, light bulb…etc) around the house? What did I do wrong? Or….is my multitester non-functional?

    Thanks for your time. You have a great day!

    • Hi Warren,

      There are possibly a few things conspiring against you.

      Zero ohms normally indicates a dead short, that is, no resistance. This normally not good as no resistance allows too much current to flow in the circuit.

      Things such as light globes are hard to measure, as the meter only reads the cold resistance. Once power is applied, the filament heats up and the resistance is greatly increased.

      Also many items around the house that are connected to a power outlet, have a low DC resistance (which is what your meter measures), but a higher impedance. Impedance is complex, but in an AC circuit, impedance is greater than the measured DC resistance. Impedance is a factor when AC passes through a coil of wire, like a heater coil, a motor winding, transformer, speaker coil etc.

      However a meter should read some resistance. From memory, a 1000 watt clothes iron measures around 32 ohms DC.

      It could be that your meter is faulty. Or it could be you didn’t calibrate the meter before measuring the resistance. On an analogue meter this normally means holding the two probes together and adjusting the calibration control until the meter reads zero. Then when you measure something, the needle should read above zero, unless there is a short.

      Hope this helps some.


      • Geoff,

        Thank you for your quick reply.

        You are right on when you suspected that my meter is faulty. I open it and found one 0.48 ohm resistor is completely ‘toasted’. My new challenge – where to find a replacement part?

        You have a good day!


  2. Hi Geoff

    I’m trying to figure out polarity for each speaker in my whole house sound system. Since the speakers are mounted in the ceiling with covers, it will be difficult / almost impossible to do the battery test thing to see the speaker cone movement. Is there any way to just hook up a meter to just the speaker wire end that terminates in my basement?



    • Hi Bill,

      Unfortunately there is no easy way to measure polarity (with a multi-meter).

      However there is no need to.

      It is best to check the polarity acoustically. This is not difficult. With a pair of speakers connected to your amplifier, play some program through it. Now stand (or lay down on the floor) between the two speakers. You should hear the common voice (or singing) of the program come from a virtual speaker between the two real speakers if the speakers are in phase. If you are not sure, change the speaker polarity over at the amp on one speaker only and you should hear a difference. You may need to experiment with different sound levels (it needs to be a bit loud) and different program sources (speech normally works well) to get a procedure that you can easy do.

      hope this helps


  3. Geoff,
    Hope you can answer this:
    I have a sprinkler system with 5 zones, of which zone 1 valve (a new valve) does not open on signal.
    To check the circuit, I used a digital meter to measure low voltage (24V A/C) accross the zone 1 wires which connect to a valve solenoid in my yard. Measuring at sprinklers control box, across Common and zone 1 wire, I read 23.8V, which is a good read. Now, measuring the same wire at solenoid connection I get 0 read out. So my tentative conclusion is that either Common or the zone 1 wire is bad (may be cut somewhere).

    Next, I disconnected the the two wires away from the solenoid, and measured voltage at the two wires. I got 13.6 V.
    So, if one (or both) of the wires is cut, should not I read 0 on the meter? (and same for shorted wires?)

    And even more puzzling to me, if 13.6 V flow on these wires, how come I see 0 when they are connected to the solenoid?

    I’ll appreciate your response.

    • Hi Ab,

      Your logic seems correct. In a perfect world you would read zero volts at the end of the cables with the solenoid disconnected. However what often happens (particularly with AC) is that some voltage is induced on the wires. While there is some some voltage (13.6 volts in your case) there is no current, hence when you place a load across the cables (your solenoid) the voltage is shorted and you read zero.

      In the end, you assumption is correct, one of the wires is probably broken or corroded.


  4. Tonight I was measuring DC current. It was a treadmill motor. With multi meter set to DC mode it read around 105 volts. With multi meter set to AC mode it read approx 215 volts (don’t remember exactly). I didn’t know you would even get a reading if measuring DC with meter in AC mode. Two questions, both assume a digital multi meter: If you don’t know voltage type (AC or DC) which should you start with? Also, is there a static multiplier to get from DC to AC?

    • Hi John,
      I share your bewilderment. Normally the meter would read either AC or DC. Sometimes when reading DC, say 12 volts DC, you would them measure AC to see if there was any ripple on the DC, but that would only be few volts.

      It would be interesting to do the same measurements with a different meter to ensure the meter isn’t faulty.

      Perhaps another reader might have an explanation.


  5. I am brand new to multimeters. I have running lights on the back of my RV. They are fed by two wires. How do I use my multimeter to determine which is the power line? I have been told I should not go by the colour of the wires but rather test them using a multimeter.

    • Hi Ron,

      On vehicles, the metal chassis is connected to the negative side of the battery. So with your multi-meter set to DC volts, place the black probe onto some bare metal of the chassis (not painted) like a bolt or screw head. Then the red probe can go on one wire at a time. When it reads around 12 volts you have found a wire with power on. I assume it should go one and off with your light switch.

      hope this helps some


      • Geoff,
        Thanks for this, I had read multiple reports on multimeters and seen more YouTube than Netflix has movies and had not found a clear explanation.

  6. Geoff,
    Had to replace some removed solar panels on RV. Including was the connectors to the panel inside RV to read volts. The wires going into panel inside were not marked + or – so I connected what looked to be correct. I’m getting 13.7 or so volts inside, so if I had the wires crossed, would the panel still potentially read 13.7 or would I get a zero or negative number on the panel inside where the solar panels readings are at? I’m getting what looks to be correct, but double checking. Thanks much. Roger

    • Hi Roger,

      It seems like you have it right. I would have thought the voltmeter would read -13.7 if you had it connected to the wrong way around.


    • Hi Prashant,

      How you measure a diode is a bit dependent on the meter you have. However most digital multi-meters will have a selection with the Diode symbol. With this selected, put the probes on either side of the diode. The meter will either read around .6 or overload. Now change the probes around, the meter should read the opposite (that is, if it read OL before it should now read .6). This indicates a healthy diode, as it is conducting on way (with a .6 volt voltage drop) and not conducting the other way.

      hope this helps


    • Hi Lisa,

      It is easier to measure polarity using voltage, but on most analog meters if you have the probes the wrong way around, the meter pointer will move sharply off to the left. Generally you should put the black probe on the positive side – but for some meters it is the opposite – probably best to consult the meter’s instructions.


  7. I’m trying ( for a school project) , to measure the output of a small solar panel ( 3.6 v 200mA) thru the day , I’m taking readings every hour to build a chart . I was connecting the multi tester positive to positive ( using the DC settings ) to take the volts readings . and just changing to AVC for the current , always less than 200mA . All this is done with the solar panel laying flat but , when I inclined the panel to get more sun directly , I get a reading of ( 1 . ) , and when I change the settings to 10A its giving me a reading of ( – !.90) . It’s my first time working with current ( I’m 11 years old) .

    So , reading your instructions to measure current , I understood that I need to have a load , and connect the proves on opposite color . But , if I need to measure just the power output of the solar panel , do I still the load , or I’m doing it right? Please help me . Thank you!

    • Hi Isabella,
      It seems you are measuring the voltage correctly. Keep in mind though that you are measuring the voltage with no load on the panel. That is the maximum voltage, or called “open circuit” voltage.

      To measure the current, I think the main thing you are doing wring is using AVC – I think means AC, whereas you need to measure DC amps, or even DC milli-amps (mA). The problem could be that your meter doesn’t read DC amps or if it does, it only reads to 200mA. Most general purpose meters don’t read high DC amps. Now, even if the meter is reading correctly, it is reading its maximum current output, as the meter is effectively shorting the output of the panel. That is the maximum amps at the lowest voltage.

      A better way for your purposes may be to connect a small torch globe to the panel (like 6 volts, 0.5 watts). This will provided a constant load on the panel. You can then measure the voltage across the load, and the current through the load (as per the article above) and this will be a better “real-world” reading, rather than the maximums only.

      hope this helps you in your project


  8. Your post says “Every meter has two probes,” but my purpose for accessing this site was to verify I won’t kill my multimeter by using the low amperage probe rather than the high amperage probe. My car battery has “550 CCA” posted on the battery, but using the high amperage probe, the multimeter does not register any voltage at all. I’m pretty sure a car battery operates in the milliamp range except while starting the car, but I don’t want to use the milliamp probe if it will burn out my meter.

    • Hi David,
      The high amperage probe is an option on some meters to allow them to read higher levels of current than the milli-amps most meters are capable of reading. You would only use this when reading high current – depending on the capabilities of the probe and the meter.

      To measure the voltage of a car battery, you would only use the normal probes, as you are measuring volts – not high current.

      You are correct in saying the car battery supplies high current on starting, but it also supplies a lot more than milli-amps in normal usage. A car headlight is normally 60 watts, that is 5 amps on its own.

      I would not be using a normal multi-meter to measure current in a car. However they are fine for measuring volts. Just select the 20 volt range on the meter and put the normal probes on each of the battery terminals. This will tell you the voltage of the battery. It should be around 12 volts with the engine off, and around 13.8 volts when charging (with the engine running).

      hope this helps
